Types and Methods of Data Transmission

Data Transmission

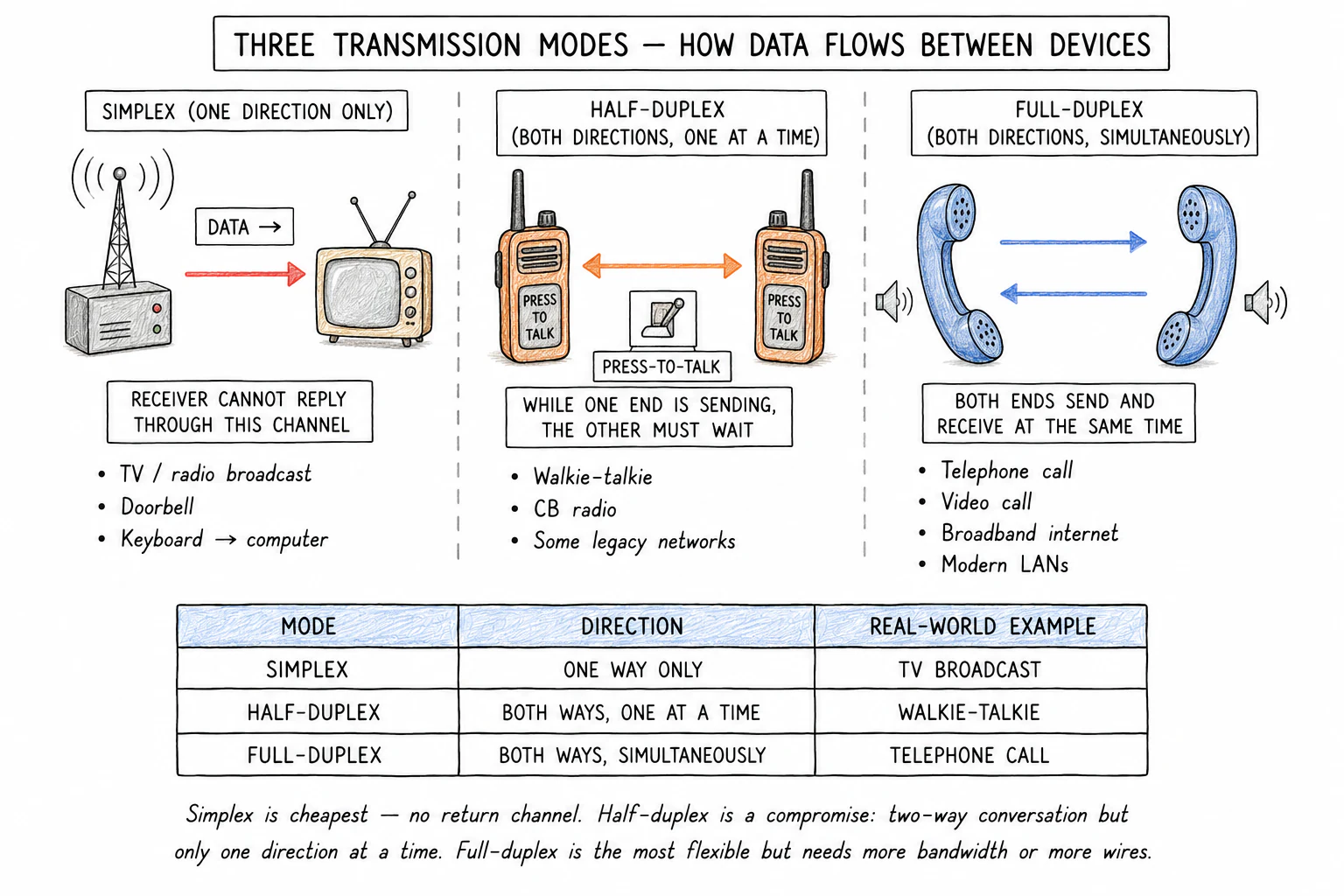

The second wired-transmission choice is whether data can flow in one direction or both, and whether both directions can happen at once.

Simplex

transmission allows data to flow in one direction only.

The receiving end can never send anything back through this connection.

Examples:

  • Radio and television broadcasts (the transmitter sends; the receiver listens but cannot reply)
  • A doorbell (button → bell)
  • A computer to a monitor (computer sends pixels; the monitor cannot send back)
  • A keyboard or mouse to a computer (input device → computer)

Half-duplex

transmission permits data to travel in either direction, but just one way at any given moment.

While one end is sending, the other must wait. The roles switch back and forth.

Examples:

  • A walkie-talkie: press the button to talk, release it to listen. Both people cannot talk at the same time.
  • CB radio
  • Some older network connections
  • A printer cable that can also send a "low ink" message back to the computer between print jobs

Full-duplex

transmission allows data to flow in both directions at the same time.

Both ends can send and receive simultaneously, as if there were two separate one-way channels.

Examples:

  • A telephone call (both people can talk at the same time)
  • Broadband internet (you can upload while downloading)
  • A video call (each participant streams video and audio in both directions)
  • Modern local-area-network (LAN) cables

Side-by-side

DirectionOne-way onlyBoth ways, not at onceBoth ways, simultaneously
ModeSimplexHalf-duplexFull-duplex
ExampleTV broadcastWalkie-talkieTelephone call
CostCheapest (no return channel needed)Cheaper than full-duplex (one shared channel)Most expensive (needs two channels or clever sharing)
Speed of two-way exchangeCannot do two-waySlower (must take turns)Fastest

Combining serial/parallel with simplex/half/full

These two choices are independent, so any combination is possible:

  • Serial + simplex: one bit at a time, one direction only (a TV remote control signal)
  • Serial + full-duplex: one bit at a time, both directions at once on two wires (a modern Ethernet link)
  • Parallel + half-duplex: many bits at once, taking turns between sender and receiver (older system buses)

Common exam question

Identifying the transmission method from a description

Question: Complete a table or circle the methods that match a description of the wires and the direction of flow, or name another method that could be used (1–4 marks, one per method).

Asked in 3 of the 17 papers. Every answer is two words. The first comes from the wires: a single wire carrying one bit at a time is serial, multiple wires carrying several bits at a time is parallel. The second comes from the direction: one direction only is simplex, both directions but one at a time is half-duplex, both directions at the same time is full-duplex. The mark is for the complete pair, so write both words.

Read the direction clause closely: data going both ways on the same connection, with nothing said about timing, fits half-duplex and full-duplex alike, which is why one question wanted two methods circled. Asked for another method a company could have chosen, any of the other five combinations scores.
