Rates of Reaction

What rate of reaction means

• The rate of reaction is how quickly the reactants are used up, or how quickly the products are formed
• Practically, rate is measured by following one quantity that changes over time:
  • Volume of gas given off, collected over water or in a gas syringe
  • Mass lost from a flask sitting on a balance as a gas escapes
  • Time taken for a visible change (a precipitate, a colour change, a cross becoming invisible)
• For IGCSE Chemistry there are four factors to investigate experimentally: surface area, concentration, temperature, and the presence of a catalyst

Effect of surface area: marble chips with hydrochloric acid

• Place a fixed mass of marble chips (calcium carbonate) into a conical flask
• Add a fixed volume of dilute hydrochloric acid and immediately close the flask with a bung connected by a delivery tube to an inverted measuring cylinder over a water trough
• Time how long it takes to collect a fixed volume of CO₂, or read the volume collected after a fixed time
• Repeat with chips of a different size (small chips, medium chips, powdered) while keeping mass and acid concentration the same
• The smaller the chip, the larger the surface area exposed, so the reaction goes faster

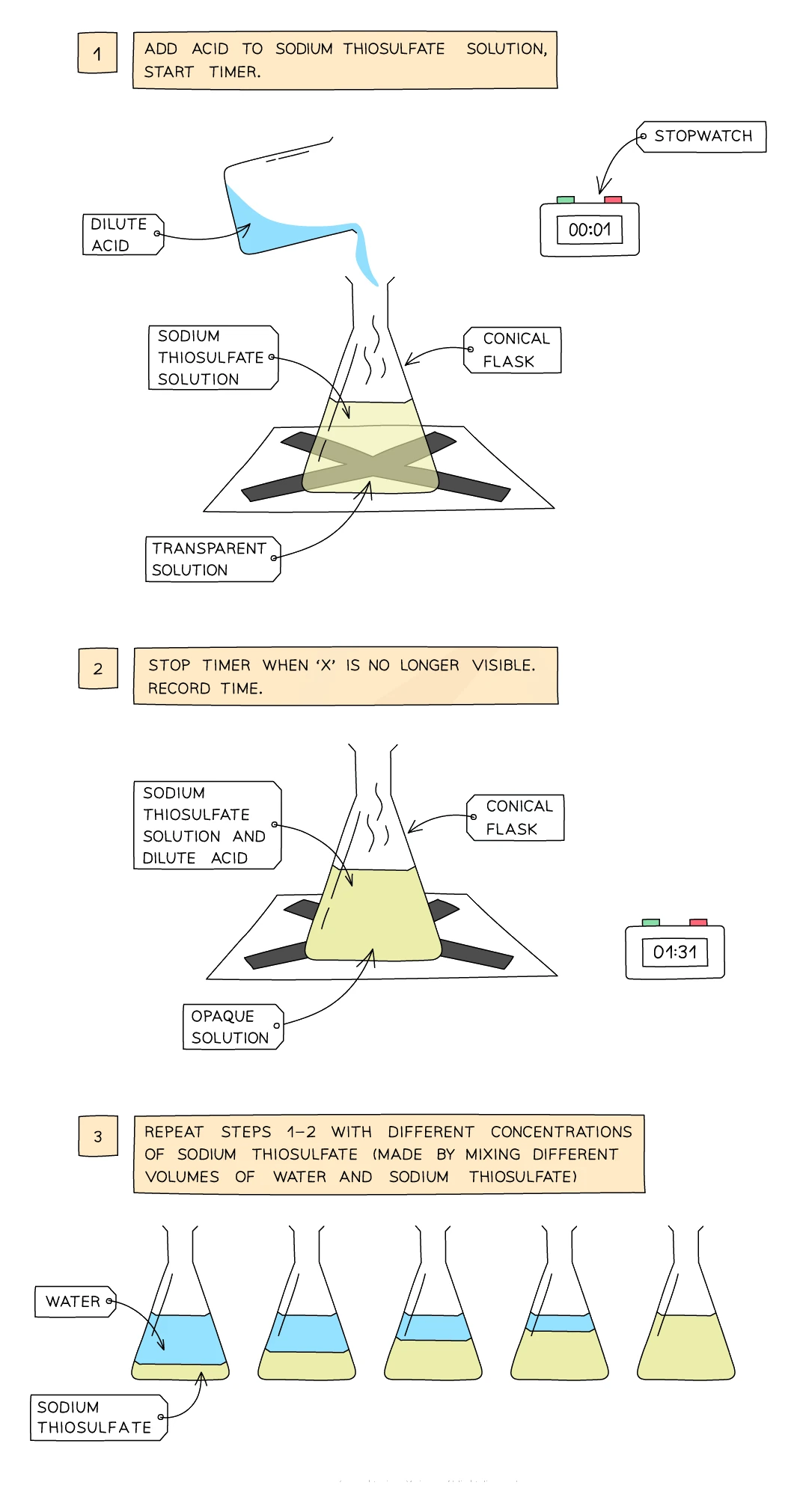

Effect of concentration: the disappearing-cross experiment

• Sodium thiosulfate solution reacts with dilute hydrochloric acid to produce a fine yellow sulfur precipitate that gradually clouds the mixture:

Na₂S₂O₃(aq) + 2 HCl(aq) → 2 NaCl(aq) + S(s) + SO₂(g) + H₂O(l)

• Measure 40 cm³ of sodium thiosulfate solution into a conical flask placed on a piece of paper with a black cross drawn on it
• Look down through the flask at the cross from directly above
• Add 10 cm³ of dilute hydrochloric acid, start a stopwatch, and stop it when the cross is no longer visible through the cloudy mixture
• Repeat with sodium thiosulfate diluted with different volumes of water (keep total volume the same) to vary concentration

Effect of temperature: magnesium in dilute acid

• Place a measured volume of dilute hydrochloric acid into a conical flask sitting in a water bath set to a fixed temperature
• When the acid has reached temperature, drop in a 3 cm strip of clean magnesium ribbon and immediately begin timing
• Stop the clock when the last of the magnesium has dissolved (no more bubbling)
• Repeat at higher and lower temperatures (e.g. 20, 30, 40, 50 °C) while keeping all other variables constant
• The hotter the acid, the faster the magnesium dissolves

Effect of a catalyst: hydrogen peroxide decomposition

• Hydrogen peroxide solution slowly decomposes on its own:

2 H₂O₂(aq) → 2 H₂O(l) + O₂(g)

• Add a fixed volume of H₂O₂(aq) to a conical flask connected via a delivery tube to an inverted measuring cylinder over water
• Sprinkle in a measured mass of solid catalyst (manganese(IV) oxide, MnO₂) and immediately replace the bung
• Read the volume of oxygen gas collected after, say, 30 s
• Repeat without the catalyst as a control; the difference shows the catalyst's effect

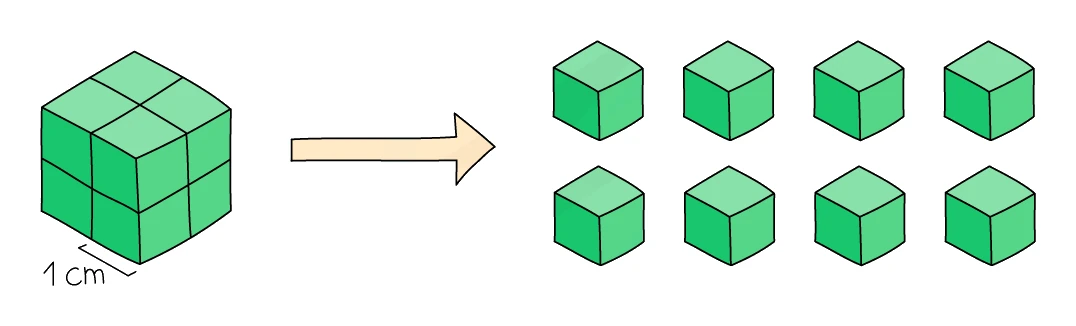

Why surface area depends on particle size
